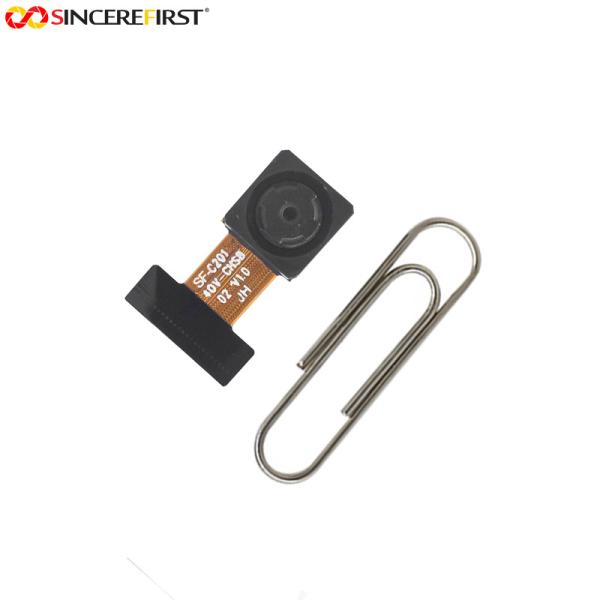

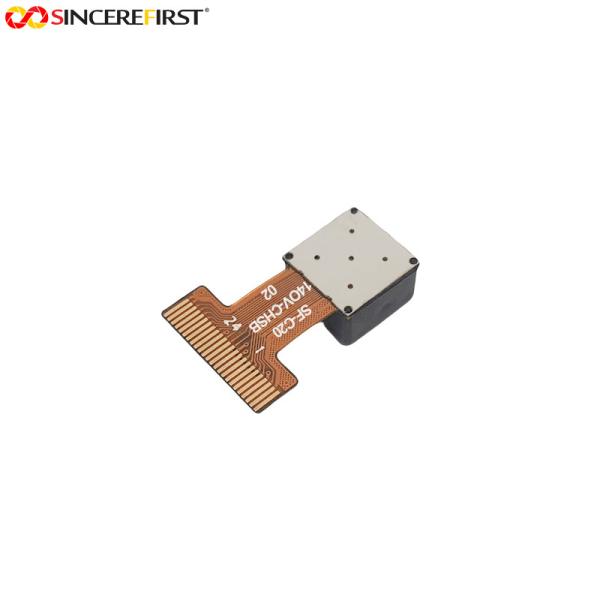

Mini Size Omnivision OV2640 2MP Night Vision Iot CMOS Camera Module
Product Description:
The OV2640 CAMERACHIPTM is a low voltage CMOS image sensor that
provides the full functionality of a single-chip UXGA
(1632X1232)camera and image processor in a small footprint package.
The OV2640provides full-frame, sub-sampled, scaled or windowed
8-bit/10-bit images in a wide range of formats, controlled through
the SerialCamera Control Bus(SCCB)interface. This product has an
image array capable of operating at up to 15 frames per second
(fps) in'UXGA resolution with complete user control over image
quality, formatting and output data transfer. All required image
processing functions, including exposure control, gamma,
whitebalance,color saturation, hue control, white pixel
canceling,'noise canceling, and more, are also programmable through
the SCCB interface. The OV2640 also includes a compression engine
for increased processing power. In addition, OmniVision CAMERACHIPS
use proprietary sensor technology to improve image quality by
reducing or eliminating common lighting/electrical sources of
image~contamination,such as fixed pattern noise, smearing, etc., to
produce a clean, fully stable color image.
Features:
◆High sensitivity for low-light operation
◆Low operating voltage for embedded portable apps
◆Standard SCCB interface
◆Output support for Raw RGB, RGB(RGB565/555),GRB422,YUV (422/420)
and YCbCr (4:2:2) formats
◆Supports image sizes: UXGA, SXGA, SVGA, and any size scaling down
from SXGA to 40x30
◆VarioPixelmethod for sub-sampling
◆Automatic image control functions including Automatic Exposure
Control (AEC), Automatic Gain Control (AGC), Automatic White
Balance (AWB),Automatic Band Filter (ABF), and Automatic
Black-Level Calibration (ABLC)
◆Image quality controls including color saturation, gamma, sharpness
(edge enhancement), lenscorrection, white pixel canceling, noise
canceling, and 50/60 Hz luminance detection
◆Line optical black level output capability
◆Video or snapshot operation
◆Zooming, panning, and windowing functions
◆Internal/external frame synchronization
◆Variable frame rate control
◆Supports LED and flash strobe mode
◆Supports scaling
◆Supports compression
◆Embedded microcontroller
Applications:
QR identification
IOT
Remote Monitoring
Digital Cameras
