    USB 3.5mm HD 1MP Endoscope Camera Module OV9734 For Android Windows

    Ask Lasest Price
    Brand Name : SINCERE FIRST
    Model Number : SF-N735V3 USB2.0
    Certification : Rohs, Reach, ISO
    Price : Negotiable
    Payment Terms : L/C, Western Union, T/T, MoneyGram, Paypal and Others
    Supply Ability : 350000 pcs / month
    Delivery Time : 7 - 15 Work Days
    • Product Details
    • Company Profile

    USB 3.5mm HD 1MP Endoscope Camera Module OV9734 For Android Windows

    USB 3.5mm HD 1MP Endoscope Camera Module OV9734 For Android Windows

    Product Description:

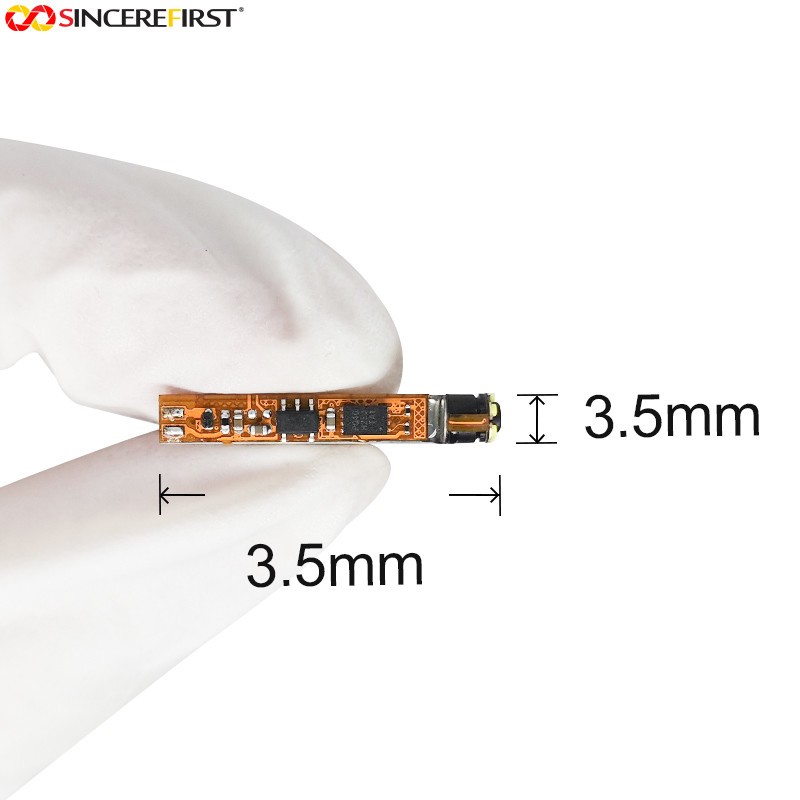

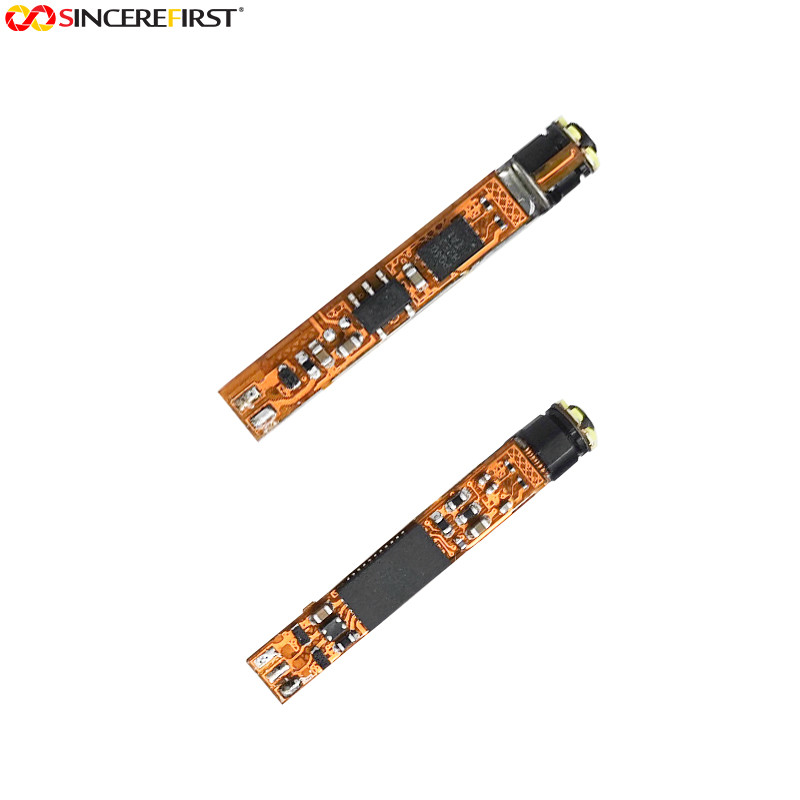

    This is a very compact USB endoscope camera module. It comes with and without steel sleeves, making it very suitable for applications that require placement in pipelines. Six additional light rings can be placed on the lens and pasted together without requiring more space.

    The chip uses OV9734, 1280x720@30FPS The picture is very clear and stable. It is very rare to achieve such a small design under 720P. You can also use your imagination to apply this design to your products, making them more competitive in the market.

    Features:

    • 3.5mm diameter
      2. OV9734 sensor endoscope
      3. IP67 waterproof
      4. Designed for medical and industrial
      5. High quality image
      6. UVC compliant, Plug & Play
      7. Support USB2.0 OTG

    Technical Parameters:

    Technical ParameterSpecification
    Pixel Size1.4umX1.4um
    SensorOV9734
    Signal-to-noise Ratio36db
    Output Image FormatYUV2(YUYV)/ MJPEG
    USB ProtocolUSB2.0HS/FS
    Output FormatStandard UVC
    Maximum Effective Pixel1280(H)X720(V)
    Lens Size1/9 Inch
    Interface TypeUSB2.0 High Speed
    Dynamic Range68db@8x Gian

    Applications:

    Pipeline Inspection
    Vehicle Inspection
    Medical ENT Endoscope
