13mp Image Sensor Modules IMX258 Sony Camera Module For Face
Recognition
Specificaitons
| Sensor Type | Sony 13MP CMOS Digital Image Sensor IMX258 |
| Optical Format | 1/3.06" |
| Focusing Range | 8cm ~ infinity |
| Resolution | 4208 (H) x 3120 (V) (active pixels) |
| Pixel Size | 1.12 x 1.12 μm |
| Output Format | 10-bit RAW data |
| Interface | 4-lane MIPI CSI-2 |
| Lens FOV | 78.4˚ diagonal |
| Focus Type | Auto Focus |
| F Number | 2.0 |
Description
The IMX258 camera module is a high-resolution camera with autofocus
capabilities. It uses the SONY CMOS image sensor and operates at 5V
supply voltage with a 30 fps frame rate and 4208H x 3210V
resolution. Its 1/3.06″ optical format and 1.12 µm pixel size
provide 13.0 Megapixel image quality. With a backside illuminated
imaging pixel structure and column parallel A/D converter circuits,
the camera module can capture high-quality images.
Features
◆13MP Sony IMX258
◆Effective focal length: 3.85mm
◆Pixels: 4224 x 3136
◆View angle: 78.4deg
◆f-number: 2.0
◆Autofocus
◆Module size: 20.85 x 8.50 mm
◆Interface: MIPI CSI, Raw Bayer output

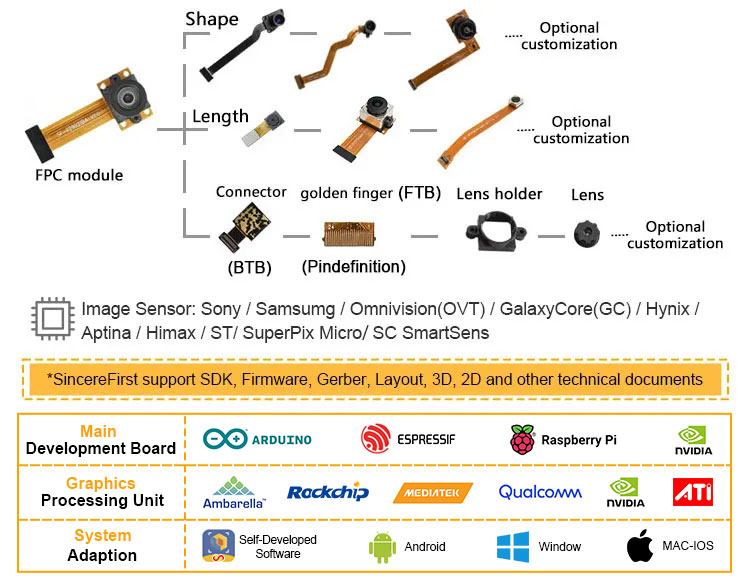

Customized Service
We can customize FPC length, module shape, module head size, lens
holder, imaging direction, pinout, connector, VCM, lens, firmware,
etc.
Why Choose US?
Applicaitons
The IMX258 camera module is commonly used in security cameras,
action cameras, drones, machine vision, inspection testers, video
conference systems and other devices that require high-quality
image capture and processing. Some of the specific applications of
the IMX258 camera module include:
1. Photography: The IMX258 camera module is used to capture
high-quality images and videos. It features a 13-megapixel sensor
with support for optical image stabilization and real-time HDR
processing, making it ideal for capturing stunning photos and
videos.
2. Security cameras: The IMX258 camera module is also commonly used
in security cameras, thanks to its high sensitivity to light and
low noise levels. It allows for clear and detailed images even in
low-light conditions, making it ideal for surveillance
applications.
3. Action cameras: The IMX258 camera module is also used in action
cameras, allowing users to capture high-quality video footage of
their adventures. With support for 1080p and 4K video recording, it
offers excellent video quality and image stabilization, even in
fast-paced environments.
4. Drones: The IMX258 camera module is also used in drones,
providing a high-quality camera that can capture aerial footage
from a bird's eye view. It offers excellent image stabilization,
enabling drones to capture stable video footage even in windy
conditions.
Overall, the IMX258 camera module has many applications in various
industries, thanks to its high-quality image capture and processing
capabilities.
Overall, the IMX258 camera module has many applications in various
industries, thanks to its high-quality image capture and processing
capabilities.
Customized Process
1. You can provide drawings or samples, as well as request
documentation and developed by
our engineering staff.
2. Communication or Meeting
3. We will communicate with you in detail to determine somewhat
product you need and try to set the most suitable product for you
according to your needs.
4. Sample Development
5. Determine the details of the development sample and the delivery time. Communicate at any time
to ensure smooth progress.
6. Sample Testing
7. Test and age on your application, feedback test results, no need
to modify, mass production.
About us
Cooperative Brands & Customers

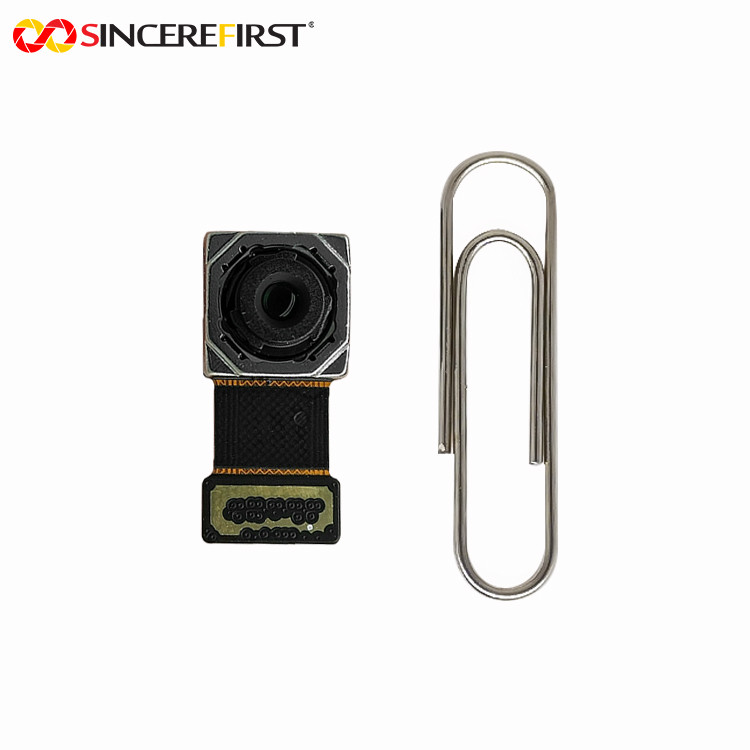

Details Pictures
