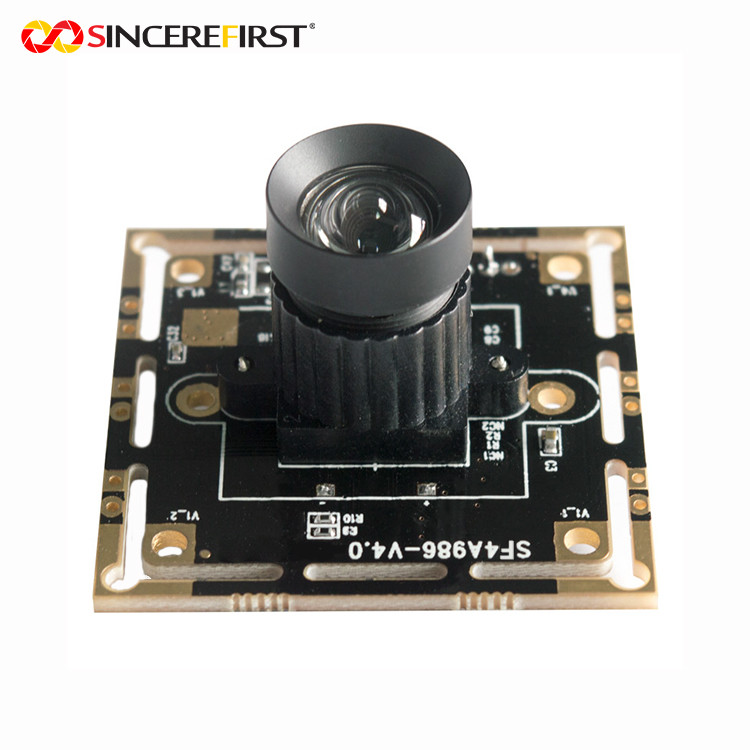

Non Distortion 4MP USB2.0 OV4689 CMOS Sensor CCTV Camera Module
Board
Specificaitons
| Sensor | 1/3’’ Omnivision OV4689 |
| Pixel | 4 Mega Pixel |
| Most Effective Pixels | 2688(H) x 1520(V) |
| Pixel Size | 2.0µm x 2.0µm |
| Focus Type | Fixed Focus |
| Interface Type | USB 2.0 |

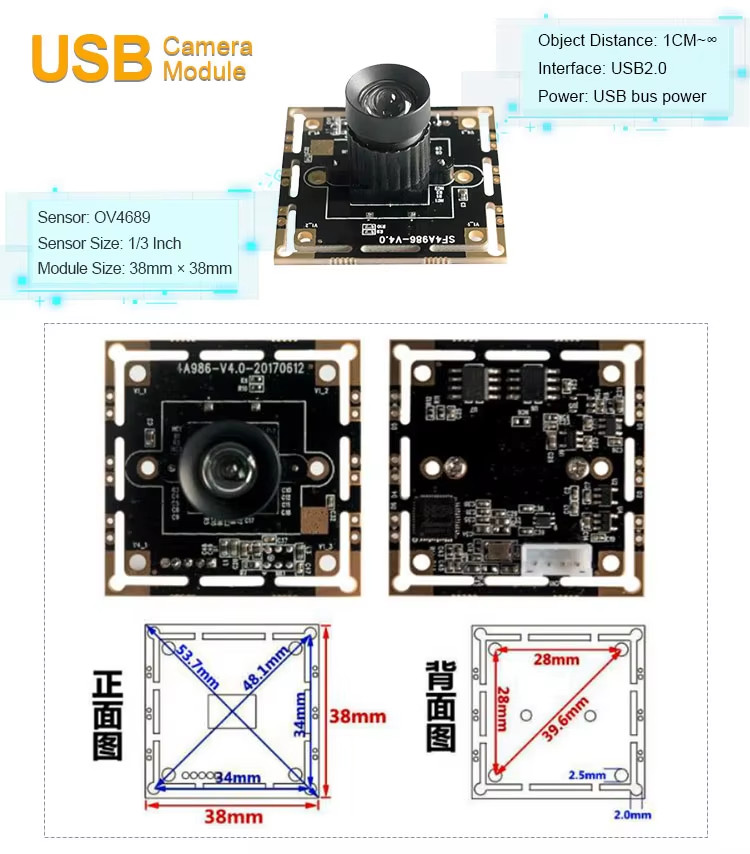

| Dimension | 38mm*38mm and customizable |
| Resolution & Frame rate | 2688*1520/30fps; 1920*1080/60fps; 1280*720/120fps; 640*480/120fps |
| Support OS | WinXP/Vista/Win7/Win8/Win10
Linux with UVC(above linux-2.6.26)
MAC-OS X 10.4.8 or later
Android 4.0 or above with UVC |
| Power Supply | USB BUS POWER |
Description
OV4689 is a high-performance 4-megapixel CameraChip sensor in a
native 16:9 format designed for next-generation surveillance and
security systems. The sensor utilizes an advanced 2-micron
OmniBSI™-2 pixel to provide best-in-class low-light sensitivity and
high dynamic range (HDR). It is capable of capturing
full-resolution 4-megapixel video at 90 frames per second (fps).
The current module size is 38mm*38mm, we can adjust the size and
shape as per your requirement; Its lens is also standard and we can
change according to your need.
Features
◆automatic black level calibration (ABLC)
◆programmable controls for frame rate, mirror and flip, cropping,
and windowing
◆static defective pixel canceling
◆supports output formats: 10-bit RAW RGB (MIPI)
◆supports horizontal and vertical subsampling
◆supports images sizes: 4Mpixel, 3Mpixel, EIS1080p, 1080p, EIS720p
◆fast mode switching
◆support 2x2 binning, 4x4 binning, re-sampling filter
◆standard serial SCCB interface
◆up to 4-lane MIPI serial output interface
◆embedded 4K bits one-time programmable (OTP) memory for part
identification, etc (see sidebar note)
◆two on-chip phase lock loops (PLLs)
◆programmable I/O drive capability
◆built-in temperature sensor
Customized Service
We can customize FPC length, module shape, module head size, lens
holder, imaging direction, pinout, connector, VCM, lens, firmware,
etc.
Customized Process
1. You can provide drawings or samples, as well as request
documentation and developed by
our engineering staff.
2. Communication or Meeting
3. We will communicate with you in detail to determine somewhat
product you need and try to set the most suitable product for you
according to your needs.
4. Sample Development
5. Determine the details of the development sample and the delivery time. Communicate at any time
to ensure smooth progress.
6. Sample Testing
7. Test and age on your application, feedback test results, no need
to modify, mass production.
Why Choose US?
Applicaitons
IP Cameras
Sport Cameras
Automotive
