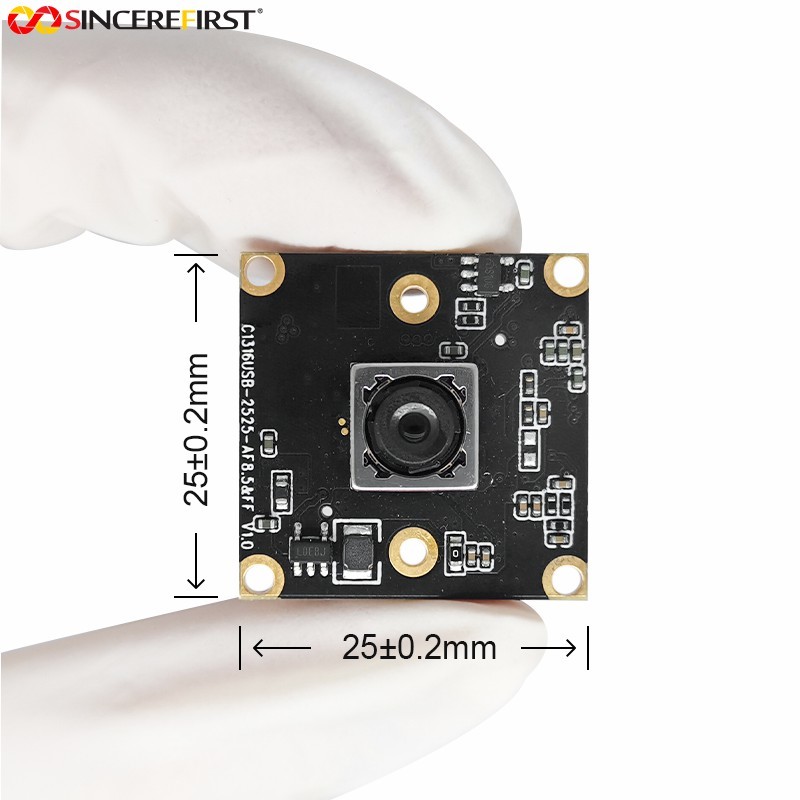

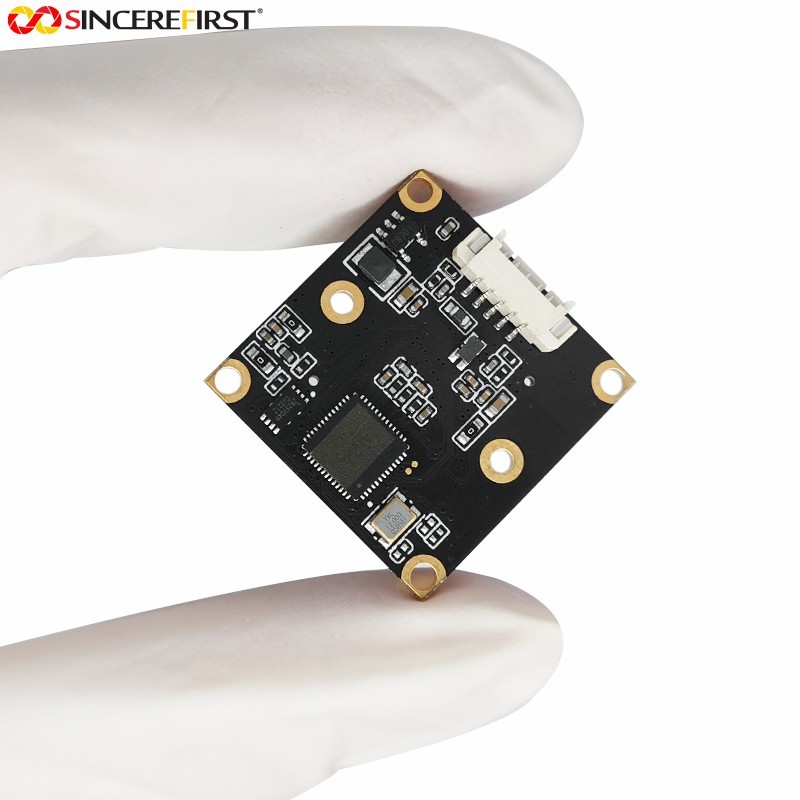

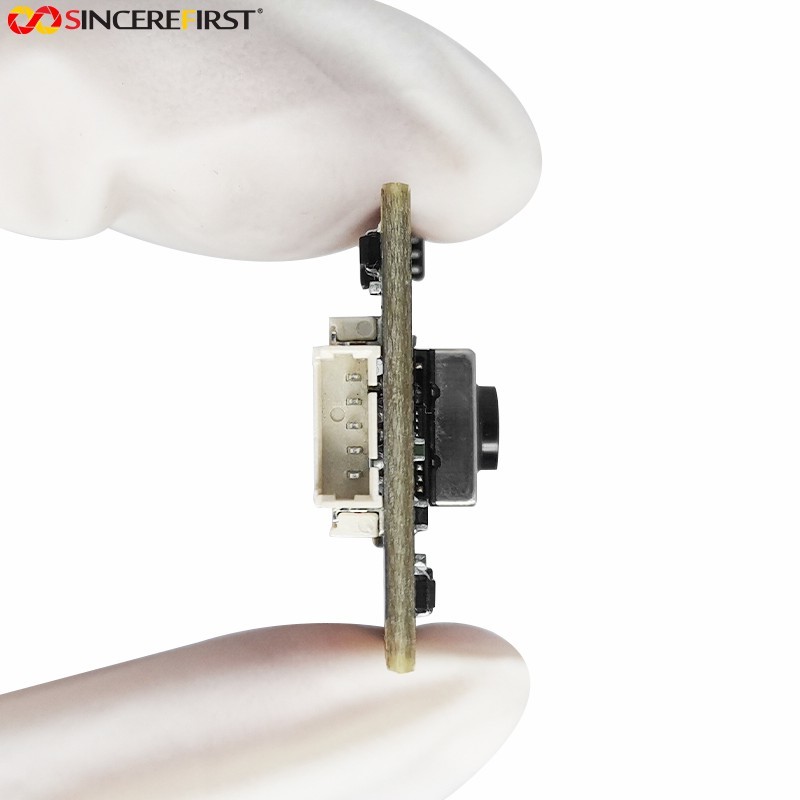

16mp Arducam IMX298 CMOS Sensor Image Resolution USB Camera Module

Specificaitons

Description

The IMX298 – 16.0 MP Raspberry Pi Compatible Camera Module features the IMX298 color sensor from Sony. Raspberry Pi uses this sensor for their 16.0 MP camera. The sensor has a 1/2.8″ optical format, which combined with the pixel size of 1.12 µm x 1.12 µm, provides the 16.0 MP 4656 x 3496 image. This is a rolling shutter sensor, which captures an entire column (or row) simultaneously. The sensor compiles the image by scanning across (or down).

Features

◆1/2.8” optical format (sensor size)
◆16.0 MP resolution (4656 H x 3496 V)
◆High sensitivity for low-light operation
◆RGBW Bayer pattern
◆Standard SCCB interface
◆Output support for Raw RGB, RGB (RGB565/555), GRB422, YUV (422/420) and YCbCr (4:2:2) formats, JPEG compression formats
◆Low operating voltage for embedded portable apps

Applicaitons

UAV/Drones/FPV camera
Machine Vision
Robotics
IoT
Face Recognition
Defect Detection
