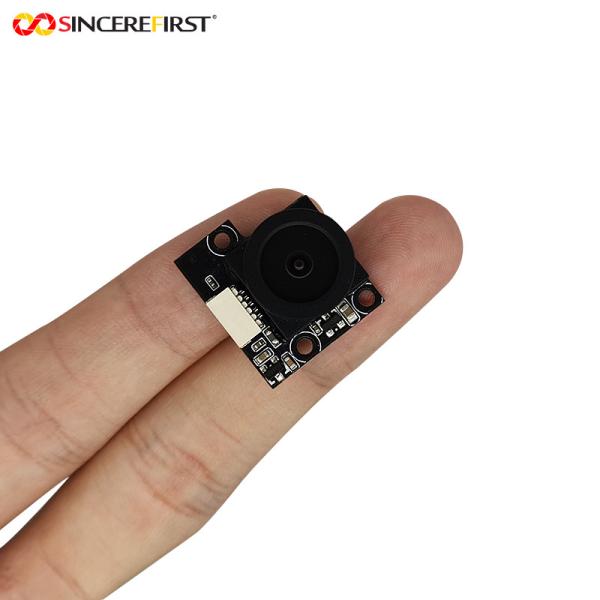

Micron 1MP Omnivision Cmos Sensor OV9712 Camera Image Sensor Types

Specificaitons

Description

OV9712 is a 1/4-inch sensor that provides full-frame, sub-sampled or windowed 8-bit/10-bit images in raw RGB format via the digital video port and with complete user control over image quality, formatting and output data transfer. The sensor offers a chief ray angle (CRA) of 25°.

Features

◆high sensitivity for low-light operation
◆ultra low power and low cost
◆automatic image control functions:
-automatic exposure controlAEC
-automatic gain control(AGC
-automatic white balance AWB
-automatic band filter(ABF)
-automatic black level calibration(ABLC
◆programmable controls:
-frame rate
-AEC/AGC 16-zone size/position
weight control
-mirror and flip
-cropping and windowing
◆image quality controls:
-lens correction
-defective pixel canceling
◆output support for raw RGB supports
image sizes:
-WXGA(1280x800
-HD720p(1280x720)
-VGA(640x480)
◆support for horizontal and vertical sub-sampling
◆support for black sun cancellation
◆support for internal and external frame cancellation
◆standard serial camera control bus (SCCB)interface
◆digital video port (DVP) parallel output interface
◆embedded one-time programmable (0TP)memory
◆on-chip phase lock loop(PLL)
◆built-in 1.5V regulator for core

Applicaitons

Notebooks
Telepresence
Digital Cameras
Webcams
Medical
Entertainment
