Mini OV7670 CMOS VGA Compact Camera Module With DVP 24 Pin
Interface
Specificaitons
| Image Sensor | OV7670 |
| Array Size | 640 x 480 (VGA) |
| Image Sensor Format | Type 1/6″ |
| Transfer Rate | 30fps |
| View Angle | D=28.7°, H=22.6° |
| Lens Type | Fixed focus |
| Interface | DVP |
| F.NO | 2.8 |
| Distortion | ＜1% |
| Analog | 2.45V to 3.0V |
Description

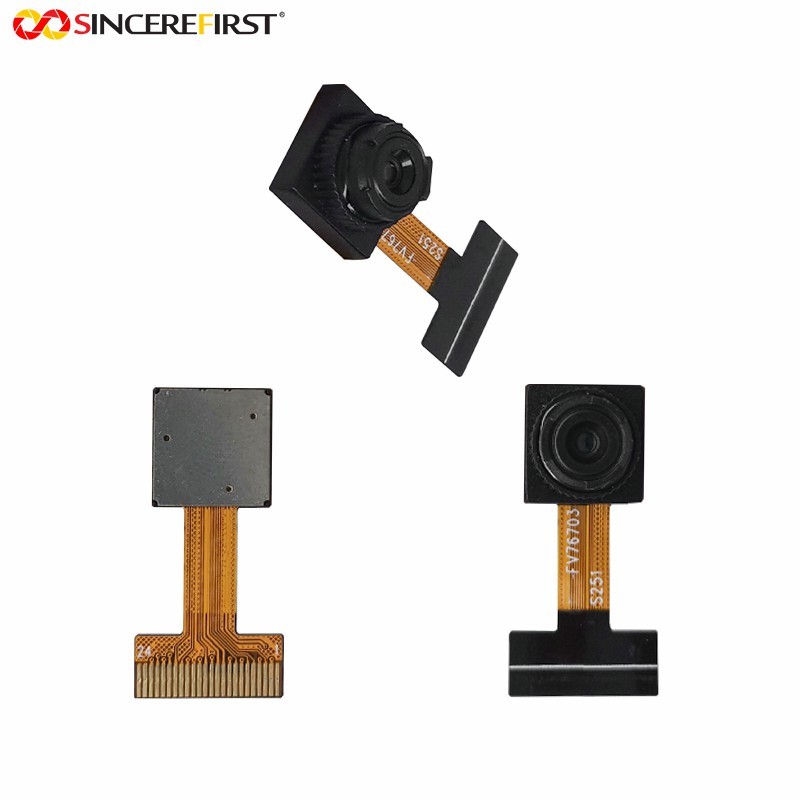

This CCM (compact camera module) based on an OV7670 sensor,
constructed with a high quality stock lens and DVP with 24 pin
interface.
It has an image array capable of operating at up to 30 frames per
second (fps) in VGA with complete user control over image quality,
formatting and output data transfer. All required image processing
functions, including exposure control, gamma, white balance, color
saturation, hue control and more, are also programmable through the
SCCB interface.
Features
◆This 0.3MP mini Compact Camera Module is based on the low voltage
CMOS image sensor OV7670, which provides the full functionality of
a single-chip VGA camera and image processor.
◆The maximum framerate of 30fps at VGA resolutions with complete
user control over image quality, formatting and output data
transfer through the Serial Camera Control Bus (SCCB).
◆Resolution: 640 x 480 (VGA); Maximum Image Transfer Rate:
30fps@VGA; Output Format(8-bit): YUV/YCbCr 4:2:2, RGB565/555/444,
GRB 4:2:2, Raw RGB Data
◆Lens SPEC: Stock lens; 45 degree (D) field of view angle; Integral
650 IR filter, visible light only; Lower than 1% distortion.
◆Recommended for electronic lovers, this CCM is compatible with
Arduino, Maple, ChipKit, STM32, ARM, DSP, FPGA, and other MCU
platforms.
Applicaitons
Visitor Monitoring System
Surveillance System
Attendance System
Facial Recognition
Document Scanning
Obstacle Avoidance
