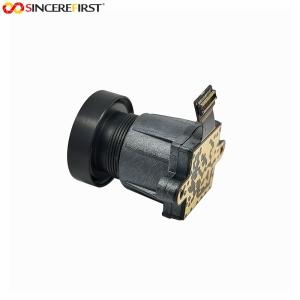

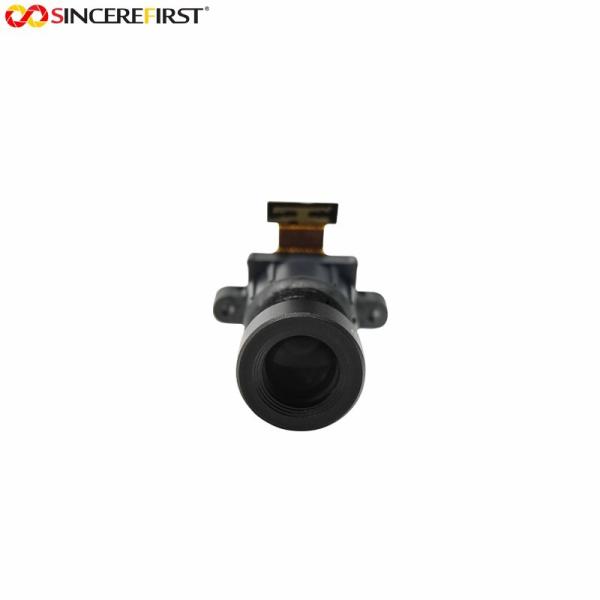

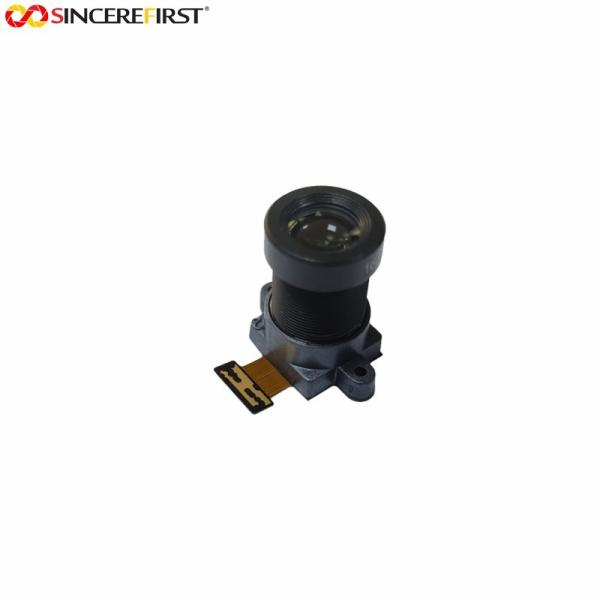

High Pixel Sony 48mp Camera CMOS Sensor IMX586 Mipi Camera Module
Specificaitons
| Image Sensor | IMX586 |
| Sensor | CMOS |
| Function | PDAF, Auto Focus, Sony Sensor |
| Features | Motion Detection, Wide Angle |
| Interface | MIPI |
| Focus Type | Auto Focus |
| Warranty | 10 Years |
| Sensor Type | 1/2.0" |
| Resolution | 48MP |
| F.NO | 2.0 |
Description
IMX586 is a high-resolution image sensor developed by Sony which
can capture images with a resolution of up to 48 megapixels. The
sensor features advanced pixel technology, including a large
1/2-inch sensor size, a 0.8-micron pixel size, and a Quad Bayer
color filter array which enables high sensitivity in low light
conditions. The IMX586 also features high-speed imaging
capabilities, enabling the sensor to capture high-quality video in
4K resolution at 60 frames per second. The sensor's advanced image
processing algorithms also make it possible to capture clear and
crisp images with minimal noise, even in low light conditions.
Overall, the IMX586 image sensor is a powerful and versatile tool
for capturing high-quality images and videos in a wide range of
applications, including smartphones, professional photography, and
surveillance systems.
Features
The name of the model is IMX586
Effective pixels resolution is 8000 × 6000
The size of the image is diagonal 8.000mm
Size of the unit cell is 0.8μm × 0.8μm
Sensitivity is approximate 133LSB
The signal level value of sensor saturation is 4500e
Voltage for analog (2.8V, 1.8V), digital (1.1V), and Interface
(1.8V)
Main functions are HDR imaging
Color filter array is Quad Bayer array
The image output format is Bayer RAW
Applicaitons
The IMX586 sensor is a 48-megapixel camera sensor developed by
Sony. It is commonly used in smartphones and has become a standard
in high-end devices. Here are some of its applications:
1. Smartphone: The IMX586 sensor is widely used in smartphones due
to its high resolution and excellent low-light performance. It can
capture images with a resolution of 8000 x 6000 pixels, making it
ideal for high-quality photography.
2. Action Cameras: The IMX586 sensor is also used in action cameras
to capture high-quality footage on the go. It can record 4K videos
at 60 frames per second, making it perfect for sports and adventure
activities.
3. Security Cameras: With its high resolution and low-light
capabilities, the IMX586 sensor is also used in security cameras to
capture clear images and videos in low light conditions.
4. Drones: The IMX586 sensor is commonly used in drones to capture
stunning aerial footage. Its high resolution and low-light
performance make it ideal for capturing beautiful landscapes from
above.
5. Medical equipment: The IMX586 sensor is used in medical
equipment such as endoscopes and microscopy to capture high-quality
images for medical diagnosis and research purposes.
6. Automotive industry: The IMX586 sensor is used in the automotive
industry to provide high-resolution images for driver assistance
systems, such as lane departure warning and collision detection.
Overall, the IMX586 sensor is a versatile camera sensor that is
used in a wide range of applications due to its high resolution and
excellent performance in low-light conditions.
