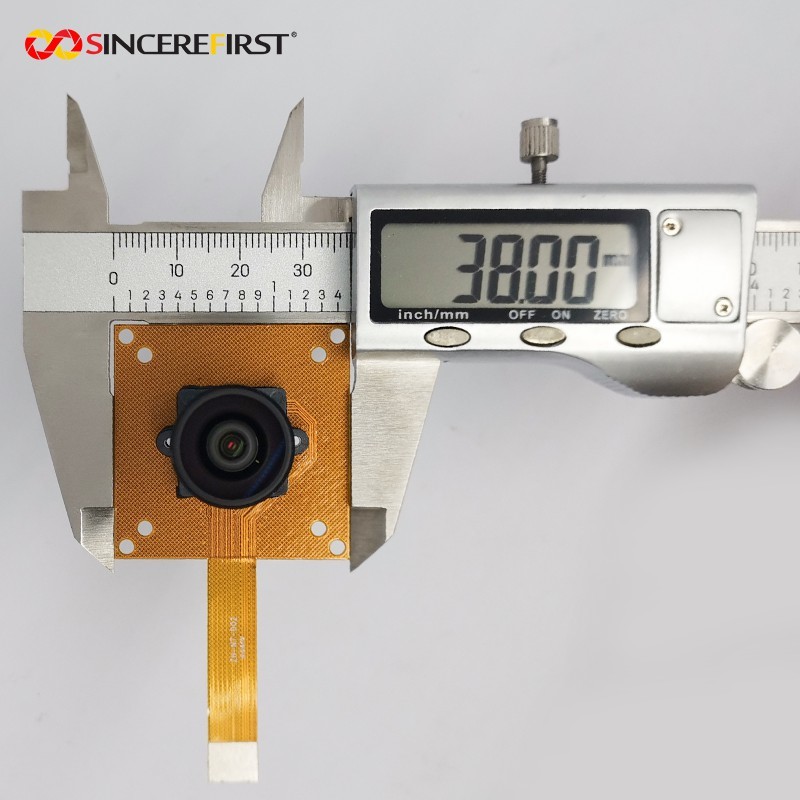

4K 8MP Sony IMX415 AI Image Sensor M12 Lens Hdmi USB Camera Module

Specificaitons

Description

The IMX415-AAQR-C is a diagonal 64mm (Type1/2.8) CMOS active pixel type solid-state image sensor with a square pixel array and 842M effective pixelsThis chip operates with analog 2.9Vdiaita 11V.and interface 1.8 V triplle power supplly, and has low power consumption.High sensitivity, low dark current and no smear are achieved through the adoption of R,Gand B primary color mosaic filtersThis chip features an ellectronic shutter with variablle chargeintegration time. (Applications:Surveillance camerasFAcamerasIndustrialcameras)

Features

◆4K 3840*2160 High resolution USB Camera module
◆1/2.5”Sony IMX415 sensor for high quality image

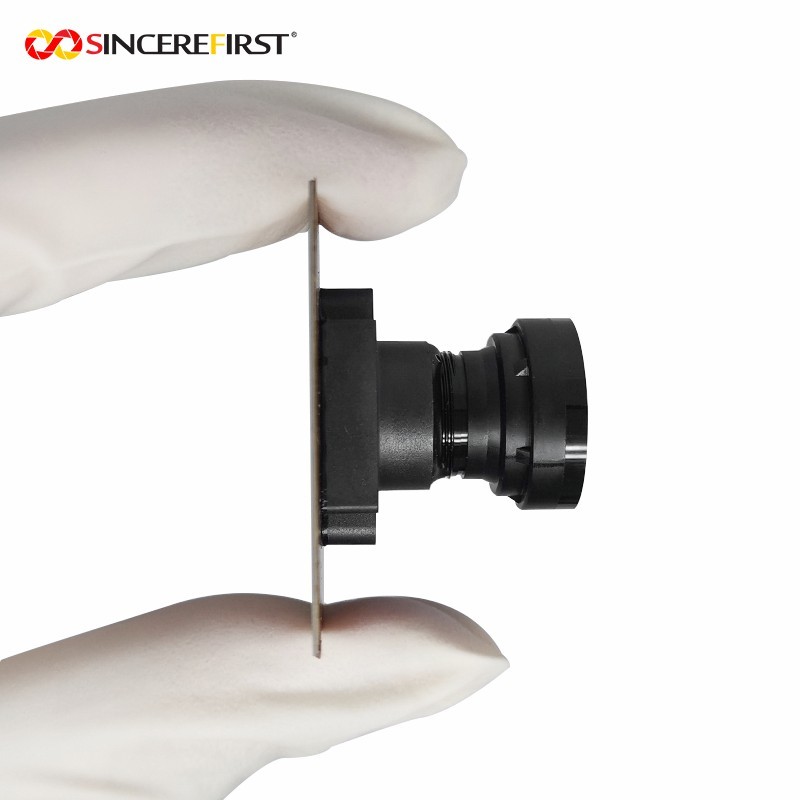

◆With HD M12 Fixed Focus Lens
◆High frame rate - MJPEG 3840*2160 30fps
◆MJPEG/YUY2 dual output format optional
◆Mini board size for embedded application
◆High speed USB 2.0 plug&play port - suitable for any PC with USB 2.0 interface
◆Low power consumption - ideal for portable equipment.

Applicaitons

Security Cameras

Traffic Monitoring Systems

Surveillance

Smart City

Disaster Monitoring Alert
