13MP Hd Omnivision OV13B10 Camera Module Image Sensor In Photography

Specificaitons

Description

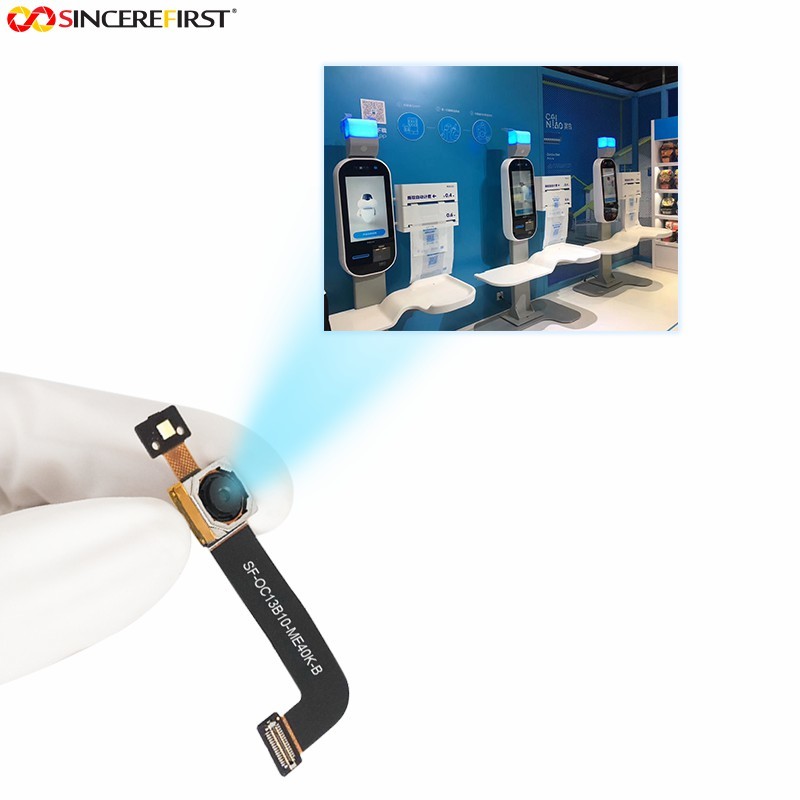

This camera module base on OV13B10-GA5A CMOS image sensor a 13-megapixel camera chip. It consists of 4208 x 3120 effective pixels with the 1/3.1 inch optical format. The sensor combined with the pixel size of 1.12 µm x 1.12 µm. It will not only fulfill the tremendous demand in the mainstream market, but can also boost the performance of entry-level smartphones. Additionally, it is a perfect fit for both wide-angle and telephoto cameras in multi-camera configurations. The image sensor supports phase detection autofocus while providing multiple resolution options to meet the needs of end users, including full-resolution 13MP image output at 30 frames per second (fps), 4K2K video at 30 fps, 1080p full high definition (HD) at 60 fps, or 720p HD at 120 fps.

Features

◆1.12umx 1.12 um pixel
◆optical size of 1/3.06"
◆33.25°CRA
◆support for phase detection auto focus(PDAF)
◆13MPat 30 fps
◆programmable controls for:
-frame rate
- mirror and flip
-cropping
-windowing
◆supports images sizes:
-13MP(4208x3120
-10MP(4208x2368
-3MP(2104x1560)
-1080p,and more
◆support for output formats:
-10-bit RAW RGB
◆total embedded one-time
programmable(OTP)memory:
512bytes
◆two-wire serial bus control(SCCB
◆MIPI serial output interface(1-lane,2-lane,or 4-lane)
◆two on-chip phase lock loops(PLLs)
◆2x binning support
◆image quality controls:
-defect pixel correction(DPC
-automatic black level calibration(ABLC
◆suitable for module size of
8.5x8.5x<5mm

Applicaitons

PC Multimedia Tablets
Wearables
3D Scanning
Virtual/Augmented Reality(VR/XR)
Positional Tracking, Gesture Recognition
Machine Vision
Biometric Scanning
