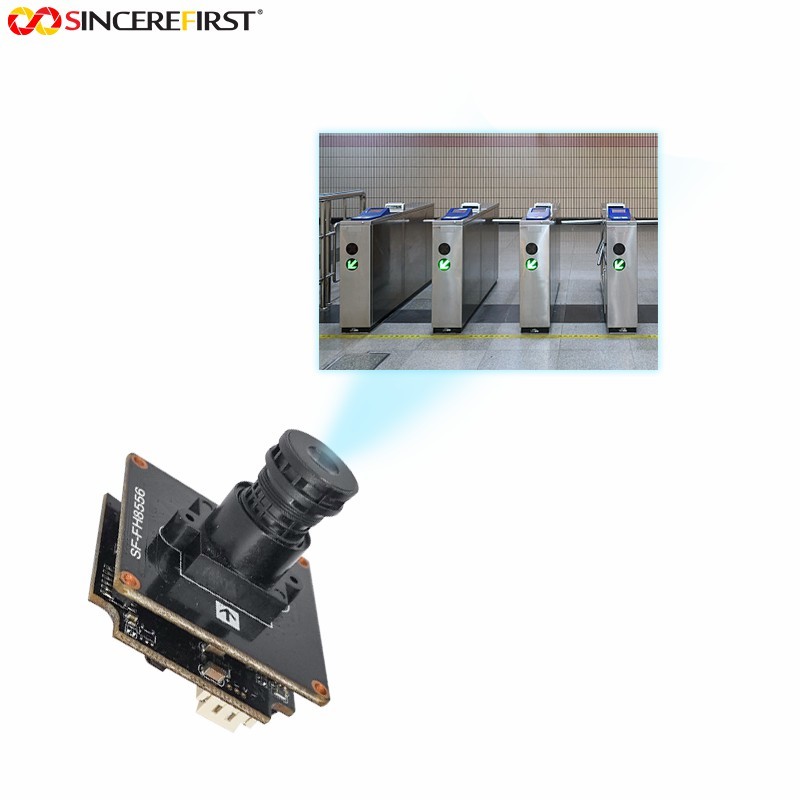

Tracking Sensor Sony IMX415 Day And Night Mode AHD Camera Module
Specificaitons
| Day and night mode | External switch/auto/colormode/black and white mode |
| White Balance | PRO/Grayscale |
| Video Settings | AHD/TVI/CVI/CVBS |
| Wide Dynamic Range | Open/Close |
| Quit | save exit/reset/don't save |
| Operating Temperature | -20°C-60°C |
| Working humidity | The relative humidity is below 90 |
| Power-current | DC12V(±20)-175MA |
| Size | 38*38*10.2(mm) |
| Type | Image Sensor |
Description
The IMX415 AHD Camera Module is a camera module designed for Smart
Video Collaboration Camera. It consists of a diagonal 6.43mm (Type
1/2.8) CMOS active pixel type image sensor with a square pixel
array and 8.46M effective pixels and Lens F/NO. 2.0 ,Field of View
Angle (Horizontal) 130 Diag, and also with very optimized TV
distortion (<15%). Furthermore,it includes VCM system to achieve
auto focusing. This Module realizes 10-bit/12-bit digital output
for shooting high-speed and high-definition moving pictures by
horizontal and vertical binning and subsampling. Realizing
high-sensitivity, low dark current, this module also has an
electronic shutter function with variable storage time.
Features
◆Used IMX415 8MP CMOS
◆4-in-1 coaxial 4K output, The image is clear and delicate
◆Illumination,0.01Lux@(F1.2,AGCON),0LUX with IR
◆Support IR-CUT switch, CDS external control, day and night
monitoring
◆Supports OSD menu control and is suitable for user - defined
Settings
◆Supports digital wide dynamic
◆Adaptive digital noise reduction, 2D-DNR, 3D-DNR
◆Supports the UTC coaxial control function
SCCB control interface for register programming
Applicaitons
AI
Machine Vision
Inspection tester
Video Conference System
Customized Service
We can customize FPC length, module shape, module head size, lens
holder, imaging direction, pinout, connector, VCM, lens, firmware,
etc.
Customized Process
1. You can provide drawings or samples, as well as request
documentation and developed by
our engineering staff.
2. Communication or Meeting
3. We will communicate with you in detail to determine somewhat
product you need and try to set the most suitable product for you
according to your needs.
4. Sample Development
5. Determine the details of the development sample and the delivery time. Communicate at any time
to ensure smooth progress.
6. Sample Testing
7. Test and age on your application, feedback test results, no need
to modify, mass production.
