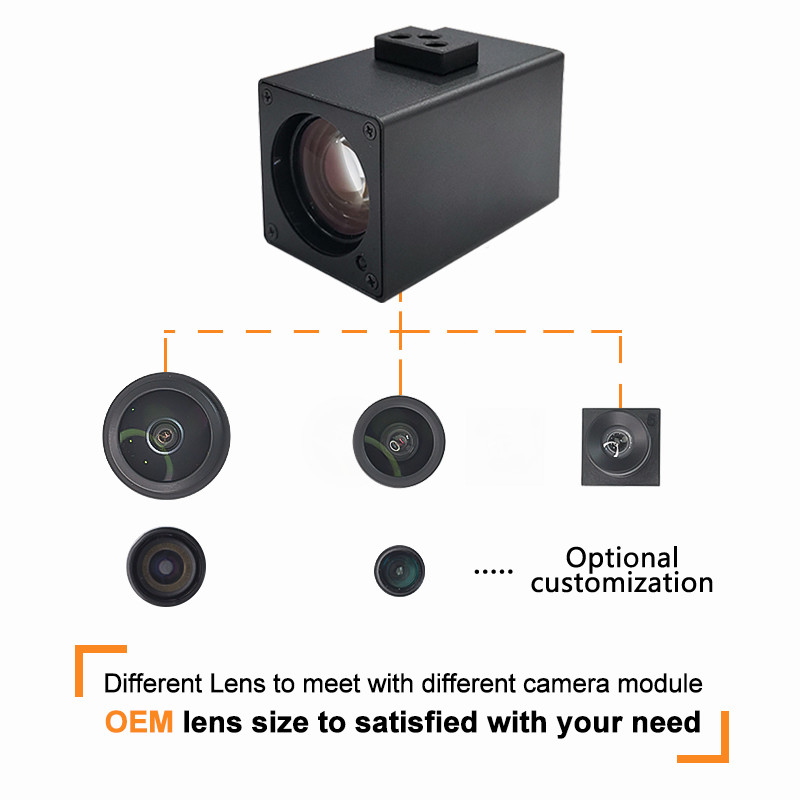

Free Driver UVC 2MP AR0230 Cmos Sensor USB2.0 10X Zoom Camera Module

Specificaitons

Description

AR0230 is a 1/2.7−inch CMOS digital image sensor with an active−pixel array of 1928Hx1088V. It captures images in either linear or high dynamic range modes, with a rolling−shutter readout. It includes sophisticated camera functions such as in−pixel binning, windowing and both video and single frame modes. It is designed for both low light and high dynamic range scene performance. It is programmable through a simple two−wire serial interface. The AR0230 produces extraordinarily clear, sharp digital pictures, and its ability to capture both continuous video and single frames makes it the perfect choice for a wide range of applications, including surveillance and HD video.

Features

◆Latest 3.0 μm pixel with ON Semiconductor DR−Pix™ technology with Dual Conversion Gain
◆Full HD support at up to 1080P 60 fps for superior video performance
◆Linear or high dynamic range capture
◆Optional adaptive local tone mapping (ALTM)
◆Pixel or Line interleaved T1/T2 output
◆Support for external mechanical shutter
◆On−chip phase−locked loop (PLL) oscillator
◆Integrated position−based color and lens shading correction
◆Slave mode for precise frame−rate control
◆Stereo/3D camera support
◆Statistics engine
◆Data interfaces: four−lane serial high−speed pixel interface (HiSPi) differential signaling (SLVS and HiVCM), or parallel
◆Auto black level calibration
◆High−speed configurable context switching
◆Temperature sensor

Applicaitons

Video surveillance
1080p60 (Surveillance) video applications
High dynamic range imaging
