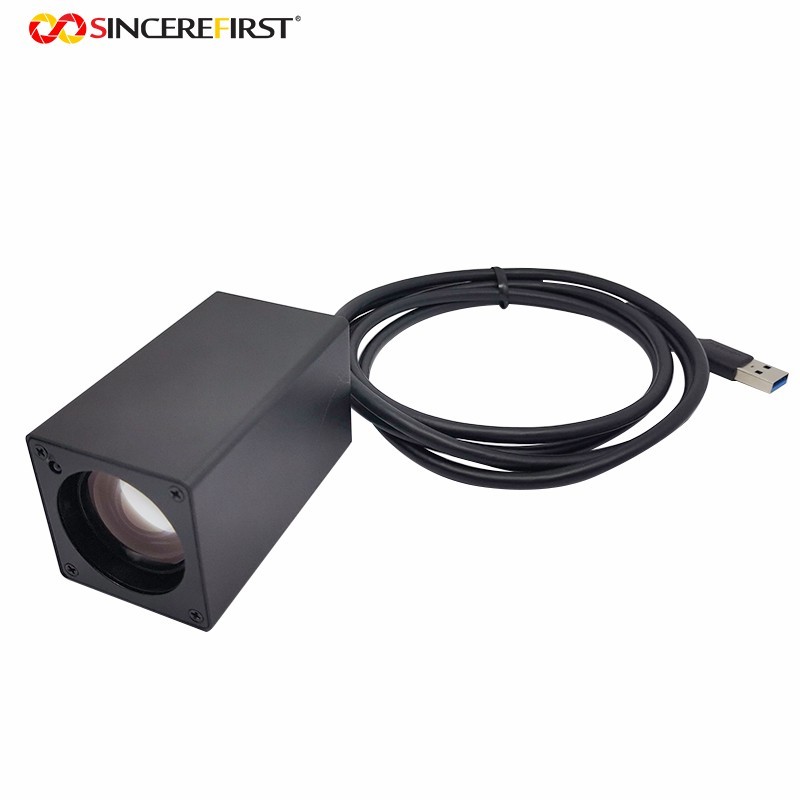

Small 4k 8mp CMOS Image Sensor IMX274 Super Zoom USB Camera Module

Specificaitons

Description

The IMX274LQC-C is a diagonal 7.20 mm (Type 1/2.5) CMOS image sensor with a color square pixel array and approximately 8.51 M effective pixels. 12-bit digital output makes it possible to output the signals of approximately 8.51 M effective pixels with high definition for shooting still pictures. It also operates with three power supply voltages: analog 2.8 V, digital 1.2 V, and 1.8 V for I/O interface and achieves low power consumption. Furthermore, it realizes 12-bit digital output for shooting high-speed and high-definition moving pictures by horizontal and vertical addition and subsampling. Realizing high-sensitivity, low dark current, this sensor also has an electronic shutter function with variable storage time. (Application: Surveillance, FA cameras, Industrial cameras)

Features

◆CMOS active pixel type pixels

◆Input clock frequency 6 to 27 MHz (CSI-2), 12/24/36/72 MHz (Sub-LVDS)

◆Both MIPI Specifications (CSI-2 high-speed serial interface) and Sub-LVDS supported

◆All-pixel scan mode 12-bit, 10-bit

Horizontal/vertical 2/2-line binning mode 12-bit, 10-bit

Vertical 2/3 subsampling binning horizontal 3 binning mode

Vertical 2/8 subsampling horizontal 3 binning mode

◆High-sensitivity, low dark current, no smear, excellent anti-blooming characteristics

◆Vertical and horizontal arbitrary cropping function

◆Variable-speed shutter function (minimum unit: 1 horizontal period)

◆Low power consumption

◆High dynamic range (HDR) function: Digital overlap HDR

◆H driver, V driver and serial communication circuit on chip

◆CDS/PGA on chip: Gain +27 dB (step pitch 0.1 dB)

◆10-bit/12-bit A/D conversion on chip

◆R, G, B primary color mosaic filters on chip

◆All-pixel simultaneous reset supported

◆92-pin high-precision ceramic package

Device Structure

◆CMOS image sensor

◆Image size

Diagonal 7.20 mm (Type 1/2.5)

◆Total number of pixels

3864 (H) × 2218 (V) approx. 8.57 M pixels

◆Number of effective pixels

3864 (H) × 2202 (V) approx. 8.51 M pixels

◆Number of active pixels

3864 (H) × 2196 (V) approx. 8.49 M pixels diagonal 7.20 mm

◆Number of recommended recording pixels

3840 (H) × 2160 (V) 8.29 M pixels aspect ratio 16:9

◆Chip size 8.365 mm (H) × 6.615 mm (V) (include scribe area)

◆Unit cell size 1.62 μm (H) × 1.62 μm (V)

◆Optical black

Horizontal (H) direction : Front 0 pixel, rear 0 pixel

Vertical (V) direction : Front 16 pixels, rear 0 pixel

◆Substrate material Silicon

Applicaitons

Digital video camera development
High-resolution surveillance IP network camera
High-resolution video conference camera
