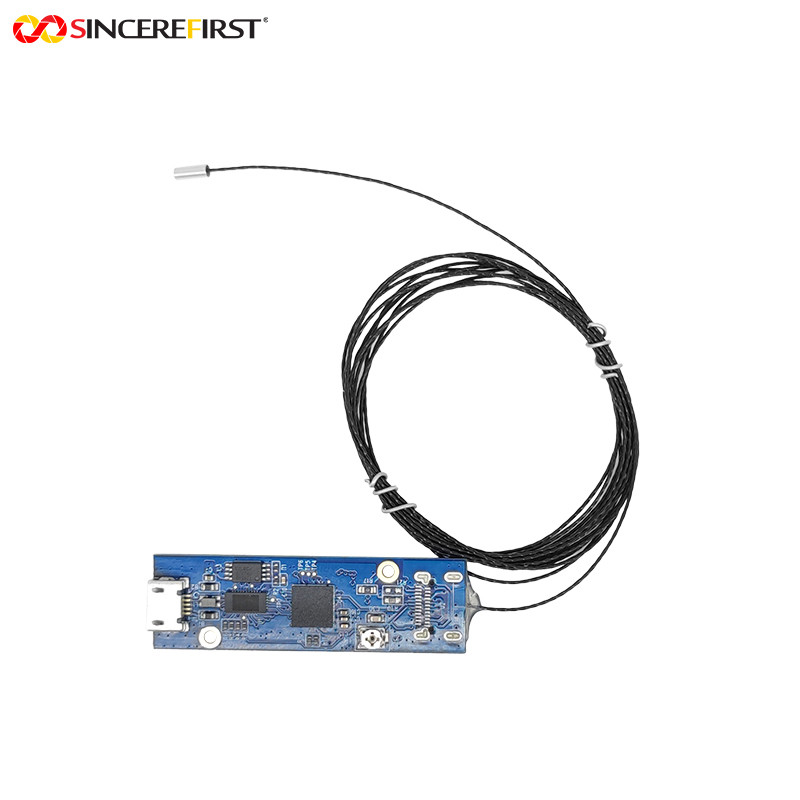

1.8mm OVM6946 Wide Angle Lens Flexible Endoscope Camera Module
Product Description:
The OVM6946 endoscope camera module is a compact camera module for
medical applications such as minimally invasive endoscopes. The
module features a 1/18-inch sensor with a compact 1.10mm x 1.10mm
and a height of 2.37mm or 2.27mm, providing a 120° diagonal field
of view. It is applicable to a wide range of endoscopic
applications, including the medical, veterinary and industrial
fields.
Features:
1. High Frame Rate: The OVM6946 can shoot high-quality video at 30
frames per second and is suitable for applications that require
high-speed imaging.
2. Field of View: This module has a 120° diagonal field of view and
is suitable for various endoscope application requirements.
3. Medical-grade Quality: OVM6946 meets strict medical device
standards and safety performance requirements, ensuring reliability
and stability in medical environments.
Technical Parameters:
| Product Name | USB2.0 Endoscope Camera Module |
Sensor | OVM6946 |
| Piexl | 400*400 |
Demeter | 1.8mm |
Output Interface | USB2.0 UVC |
Format | YUV&MJPG |
Connector | Micro USB-5P |
Focusing Range | 5-50mm |
Focal Length | 0.418mm |
TV Distortion | ＜-11% |
Applications:
Medical Field: For internal inspection of medical equipment, such as surgical
instruments, maintenance and repair of medical equipment.
Industrial Machinery: For internal inspection and maintenance of factory equipment, such
as troubleshooting inside pipes and machines.
Customized Process:
1. You can provide drawings or samples, as well as request
documentation and developed by our engineering staff.
2. Communication or Meeting
3. We will communicate with you in detail to determine somewhat
product you need and try to set the most suitable product for you
according to your needs.
4. Sample Development
5. Determine the details of the development sample and the delivery time. Communicate at any time
to ensure smooth progress.
6. Sample Testing
7. Test and age on your application, feedback test results, no need
to modify, mass production.
