Brand Name : | SINCERE FIRST |
Model Number : | SF-TA10USB-D0.9 |
Certification : | CE, FCC, RoHS, REACH, ISO |
Price : | Negotiable |
Payment Terms : | L/C, Western Union, T/T, MoneyGram, Paypal and Others |
Supply Ability : | 350000 pcs / month |
Delivery Time : | 7 - 15 Work Days |

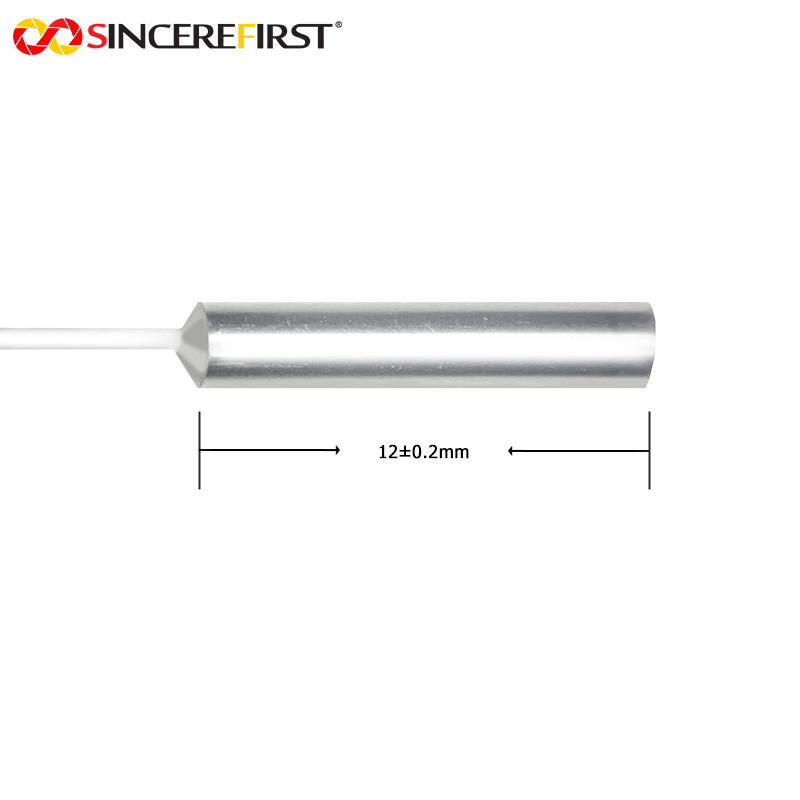

This MINI endoscope camera module uses a CMOS OCHTA10 sensor with a resolution of 400*400. The endoscope camera module has an outer diameter of 0.9mm without LEDs. The FOV (diagonal) is 120 degrees and the depth of field is 3-100 mm.
Pixel Size | 1.4umX1.4um |
USB Protocol | USB2.0HS/FS |
Lens Size | 1/9 Inch |
Maximum Effective Pixel | 1280(H)X720(V) |
Sensitivity | 600mV/Lux-sec |
Output Format | Standard UVC |
Sensor | CMOS Sensor |
Image Region | 1972μm X 1008μm |
Interface Type | USB2.0 High Speed |
Output Image Format | YUV2(YUYV)/ MJPEG |
Pipeline Inspection
Medical Equipment
Industrial Cameras
![]() |
