Brand Name : | SINCERE FIRST |
Model Number : | SF-SL1170-A30 V1.0 |
Certification : | CE, FCC, RoHS, REACH, ISO |
Price : | Negotiable |
Payment Terms : | L/C, Western Union, T/T, MoneyGram, Paypal and Others |
Supply Ability : | 350000 pcs / month |
Delivery Time : | 7 - 15 Work Days |
This camera AR0230 wide angle finished camera module with housing is fog and moisture proof. It has a resolution of 2MP, supports 30FPS frame rate, adopts USB2.0 interface, complies with UVC standard, plug and play, and does not require any driver or software. Designed for special applications such as refrigerators, freezers, freezers, vending machines, kiosks, cold storage, etc.
1. Anti-fog & Anti-moisture design with casing
2. 2MP resolution with high quality CMOS image sensor
3. UVC compliant, Plug & Play
4. Support Linux, Android, Mac and Windows
5. Built-in fisheye lens of 120° view angle

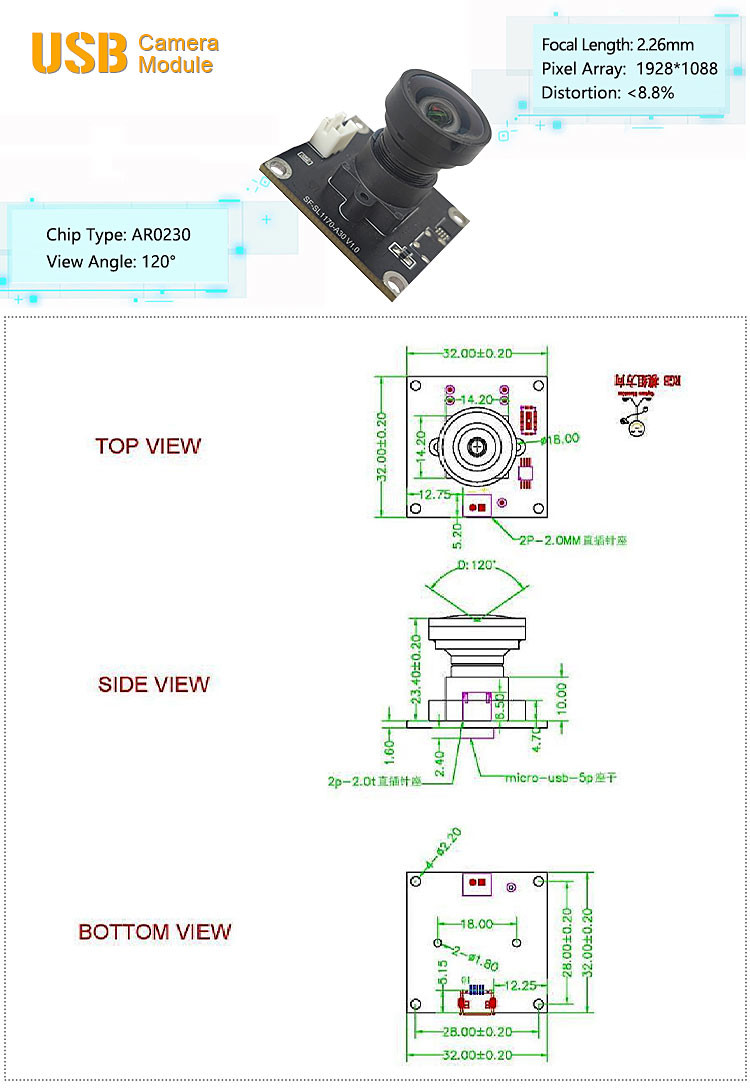

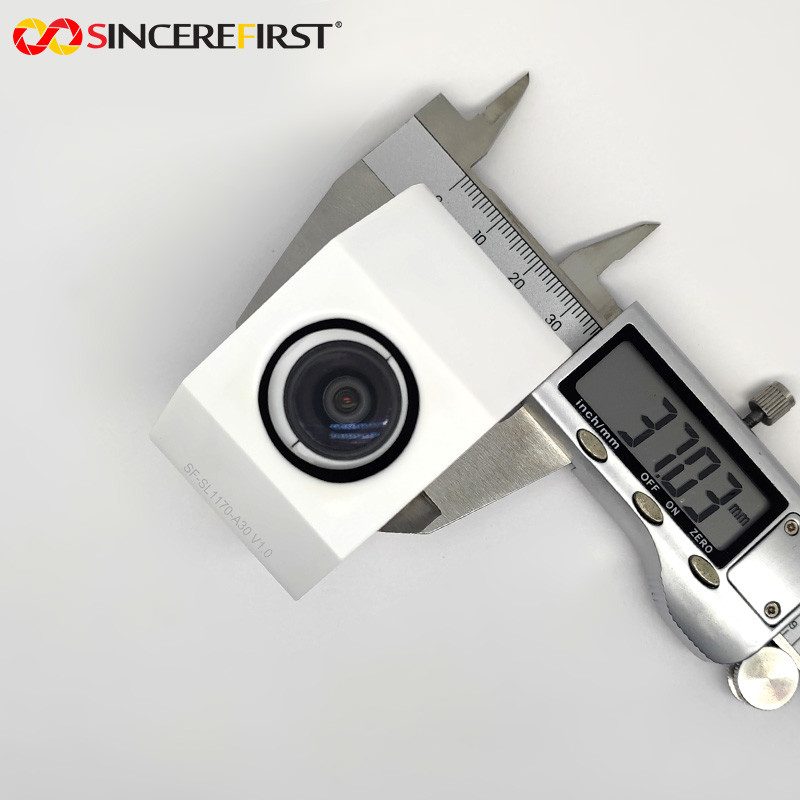

Module Size: | 32MM*32MM*27.5MM |
Sensor Type: | AR0230 |
Interface: | USB2.0 |
Active Array Size: | 1928*1088 |
Lens Construction: | 2G4P+IR(650NM) |
Keywords: | Refrigerator Camera Module |
Focal Length: | 2.26mm |
FOV(D): | 120° |
TV Distortion: | <8.8% |
Power: | USB Bus Power |
Fridge
Refrigerator
Freezer
Vending Machine
Koisk
Cold Storage
![]() |
