Product Description:
The BF314A is a 1/4-inch 720P HD CMOS Image Sensor which includes
CMOS image sensor(CIS),Sensor control. It is fabricated with the
world's most advanced CMOS image sensor process to realize
ultra-low dark noise, high sensitivity, high dynamic range and very
low power imaging system. The sensor consists of a 1288*728 pixel
array which has an optical format of 1/4 inch for 720P. It has
integrated noise canceling CDS(Correlated Double Sampling)
circuits,analog global gain control, auto black level
compensation,on-chip 10-bit ADC.It provides Raw data with 10-bit
parallel ports. It has a commonly used two-wire serial interface
for host to control the operation of the whole sensor.
The product is capable of operating at up to 30 frames per second
at 37.125MHz master clock in 720P HD mode, with complete user
control over image. All required sensor control functions,
including Exposure control, Gain control, image size and so on,
could be programmable through the two-wire serial bus.
Features:
- Standard optical format of 1/4 inch for 720P
2. 30 frames/sec 720P mode @ 37.125MHZ inner clock.
3. Ultra-low dark noise at high temperature.
4. Ultra-Low power consumption of typical
5. Output formats: Raw Bayer(720P).
6. Power supply:1.7V~3.45V for I/O, 2.6V~3.0V for VDD3A.
7. Horizontal Nertical mirror.
8. Auto biack level control.
9. Sensor Control function: Exposure control, Gain control, Test
pattern, lmage size control.
10. Package: CSP.
Technical Parameters:

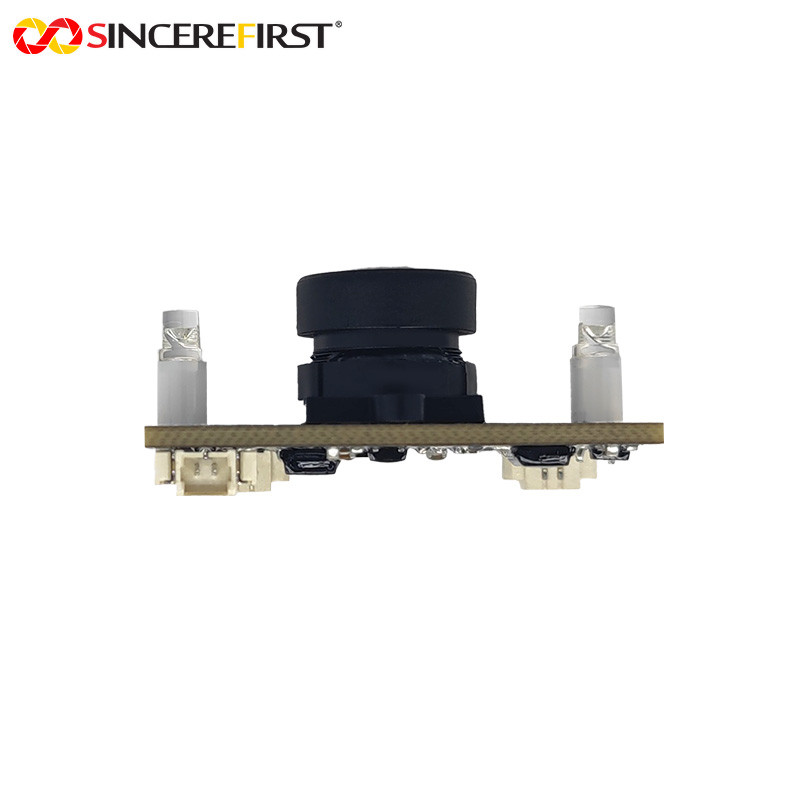

| Product Name: | Wide Angle BF314A USB Camera Module |
| Composion: | 4E+1IR |
| Lens Size: | 1/4inch |
| Output Format: | MJPG/YUY2 |
| Standard Interface: | USB2.0 |
| View Angle: | D152° H116° V86° |
| Distortion: | ＜22% |
| Drive-free Agreement: | USB Video Class(UVC) |
| Resolution: | 720P |
| Focus Type: | Fixed Focus |
Applications:
Smart Home Appliances
Parking Assist
Blind-Side Detection
Robot
Garbage Classification Detector
